Mit dem Einkaufen fortfahrenTD006 - A smart touch dimmer controller for LED strip!
DC12-24V 4A brightness adjustable 12v touch sensor switch Touch Switch Touch Sensor Detector dimmer Switch for LED tape light
Product Parameters:
| Input/Output Voltage | 12-24V | Dimension | 40*40*8mm |
| Current | 4A | Watt | 48W (12V); 96W(24V) |
| Model | TD006 | Certificated | CE, RoHS |
| Input and output cable length | 25cm DC wire (customized length can be ordered) | Function | Touch switch ON/OFF+dimming+memory function |

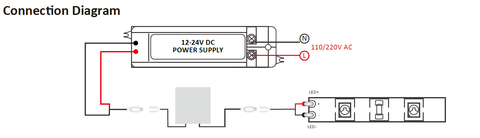

Connection Guidance:
Product Description:
With memory external switch on/off and dimmer:Touch the wood panel or glass maximum thickness 25mm where the TD006 switch is located to turn ON/OFF the led lamps.
- Originally "Off" when the power is connected.
- Quick touch (Time is less than 550ms) can turn ON/OFF the light. One touch to turn on; touch again to turn off. The lamp is 90% bright when it is on.
- Hold on touching (Time is above 550ms) can adjust the brightness endlessly. It will reduce the bightness endlessly to the minimum in 3 seconds holding on when the light is on. It will increase the brightness endlessly to 100% in 3 seconds holding on when the light is off.
- Quick touch and hold on touching can be chosen anytime without any collision.
- This sensor will memorize the status of the dimming in 12V-24VDC.

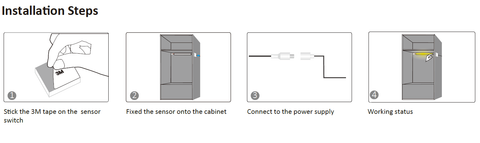

Product Installation:
Product Certificatation:
Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
Packing & Delivery:
Custom Packing and Custom Label are available as request !
