Hot Sale Surface Mounted Door or Hand Sensor Switch- IR006-D/IR006-H !!

Product Parameters:

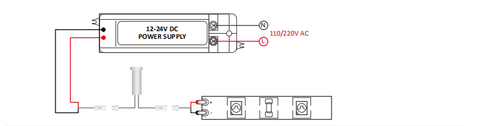

Connection Guidance:

Door Sensor IR006-D Product Description:

• Lights will be ON/OFF when open/close the door.
• The IR sensor switch will turn on the LED light when the door is open and will turn off the LED light when the door is closed.
• Detec􀀁on range is 10cm from the sensor detector to the door.
• The sensor switch will turn on or off the LED light with above repeatable steps.

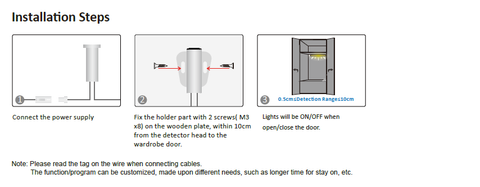

Door Sensor IR006-D Product Installation:

Step 1: Install the holder part with hand sensor.

Step 2: Fix the holder part with 2 screws(M3x8) on the wooden plate.

Hand Sensor IR006-H Product Description:

• The LED lamp connects to the output end.
• The IR sensor switch will turn on the LED light when the hand pass over the detector within 10cm in distance and will turn off the LED light when the hand pass over the detector again.

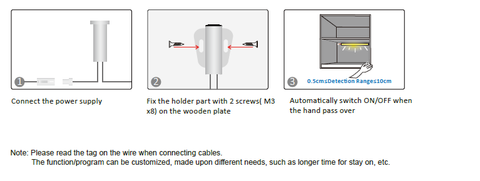

Hand Sensor IR006-H Product Installation:

Step 1: Install the holder part with hand sensor.

Step 2: Fix the holder part with 2 screws(M3x8) on the wooden plate.

Product Certificatation:

Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
