Dotless 24V LED COB Strip, two PCB widths can be chosen!

von WanChun
Jan 29, 2021

Dotless Flip Chip On Board Cob Strip Led Tape For Led Sign DC24V 10W 5 Meter CRI90 512 leds LED Flexible COB Strip

Product Parameters:

Chip	COB
LED Density	512LED/M

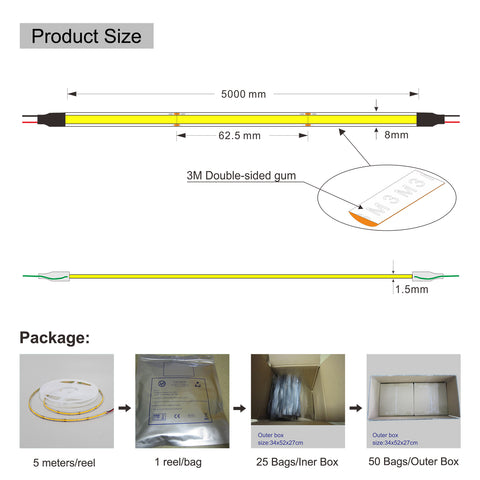

PCB width	8mm / 10mm
Voltage	24VDC
Power	10W/M
Cutting space	Every 62.5mm
IP rate	IP20 non-waterproof
CRI	80 / 90
Lumen	1050-1200
Certificate	CE, RoHS
Warranty	2 years

TWO PCB width to choose!

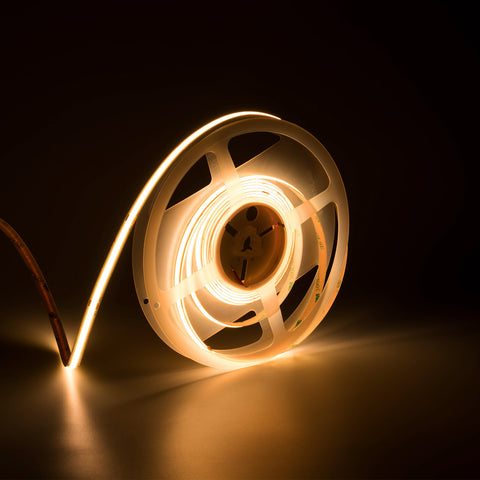

SUR-FCOB512-24V-M8 (PCB WIDTH: 8MM)

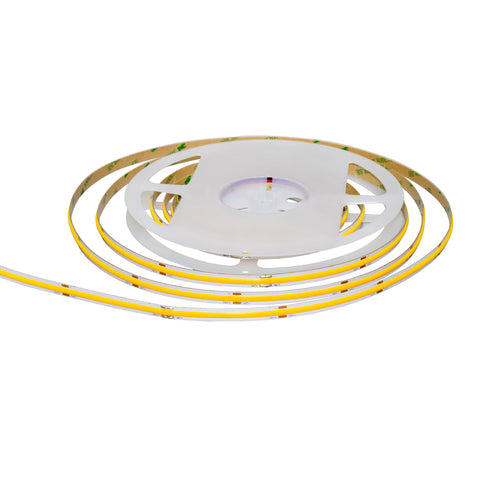

SUR-FCOB512-24V-M10 (PCB WIDTH: 10MM)

Product Features:
• New Flip Chip On Board Flexible LED Strip, 512 chips per meter.
• Ideal for LED lighting application to avoid multi-shadows.
• Higher heat conductivity for better thermal management.
• Provide variable and innovative array LED layout designs and combinations.
• Available in 24V DC maximum.
• Very bright & low power consumption.
• Operating temperature: -20°C to +50°C.

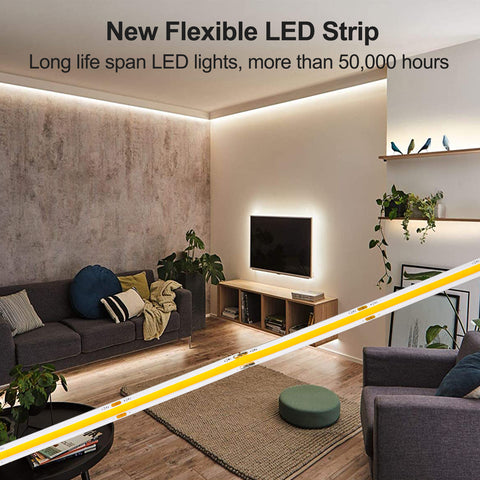

• Long life span LED lights, more than 50,000 hours.
• Adhesive back, peel & stick!

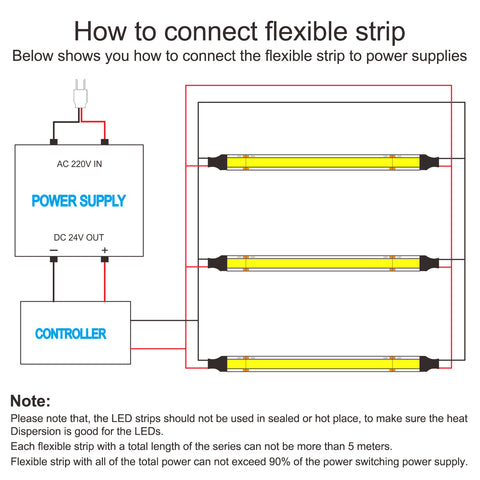

• All available controller or dimmers.
• Non-waterproof, IP20.

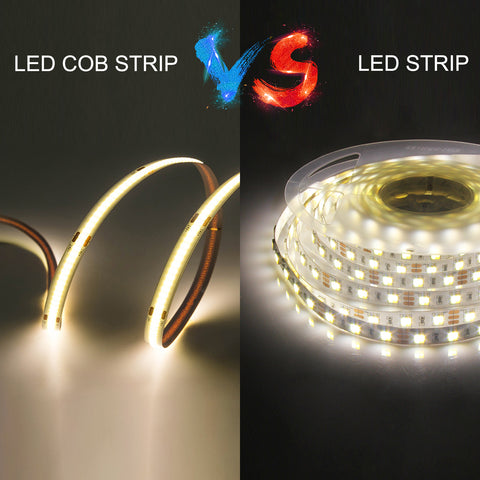

What is the difference between COB light strip and LED light?
