SUR-2835FW60-12/24V Flexible LED Strip

  • $1.90
Zoom image

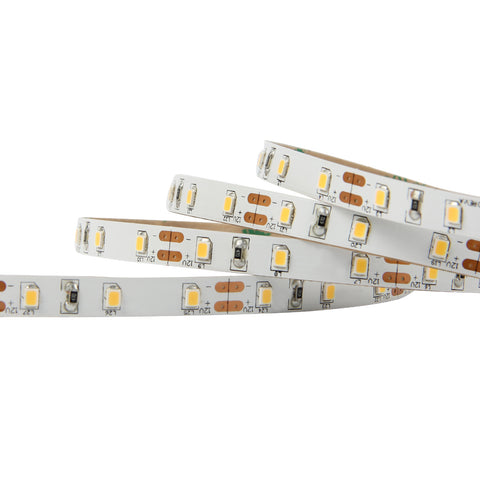

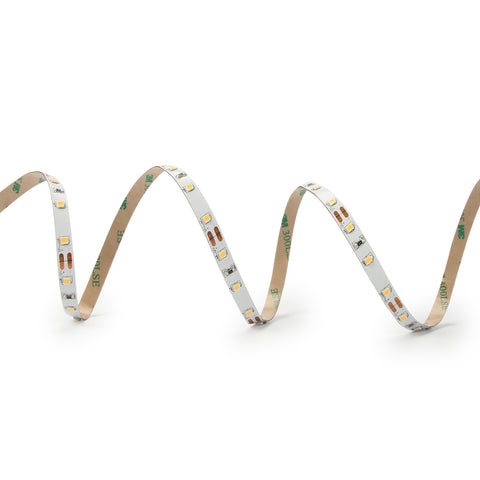

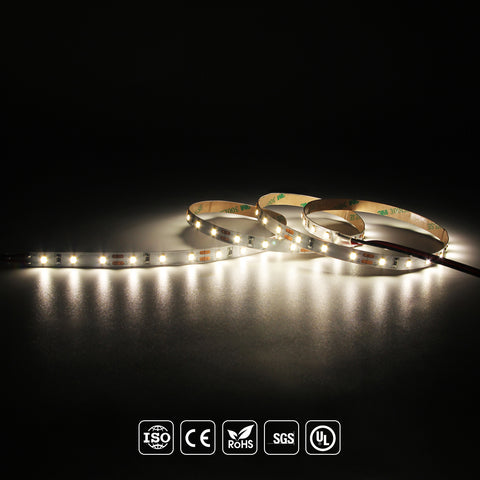

SUR-2835FW60-12/24V Flexible LED Strip

  • $1.90
Voltage:

SMD 2835 8mm LED Strip Lights 60LEDs 14.4W/m, 12V/24VDC warm LED Tape Strip Light led strip light ted bakercarousel strip

Product Parameters:
Item Type Flexible LED Strip
Model SUR-2835FW60-12/24V
LED Type High Brightness SMD 2835
Beam Angle  120o
Certification CE, ROHS
CRI Range 90

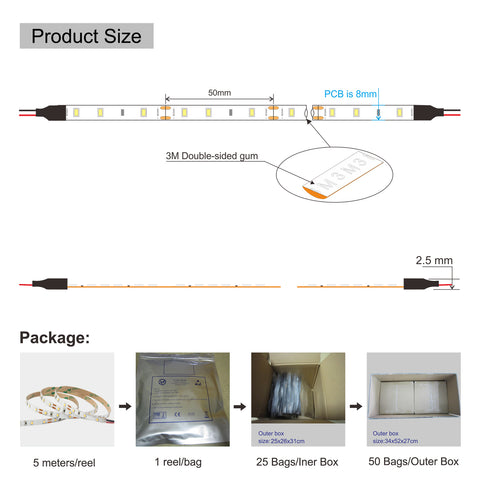

Cuttable Increments 8mm
Cut length Every 50mm
Environment, IP Rating Indoor, IP20
Input Voltage 12V/ 24V DC
LED Qty per meter 60
Color Temperature 2700-6500K
Warranty 3 years


Product Details

High Quality SMD LED Chips:

Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay. All our LEDs can meet LM80 test standard, 70% at 36000 hours.

High Quality Double Layers PCB:

Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models. So there is low voltage drop and good heat dispersion too.

We can add constant current IC on the flexible PCB so the customer can connect led strip for 15 meters long with only one power supply. For example our model 2835FWW120CC-24.

cri90 5mm width 2835 flexible led light strip diffuser

Color Temperature Consistency:

We always require same bin number SMD LEDs for different production batches for the same customer. We have spectrometer to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100K, and 3 MacAdam LED is +/-50K for warm white 3000K.

We can produce 3 MacAdam LED Strip/tape as customer request.

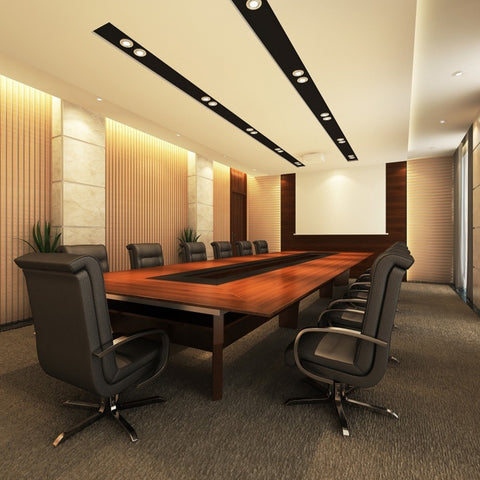

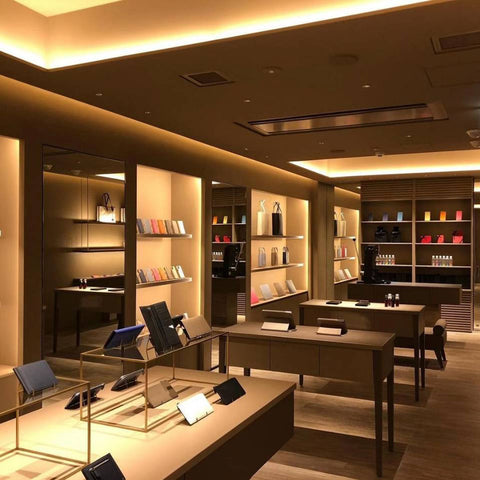

Product Application:

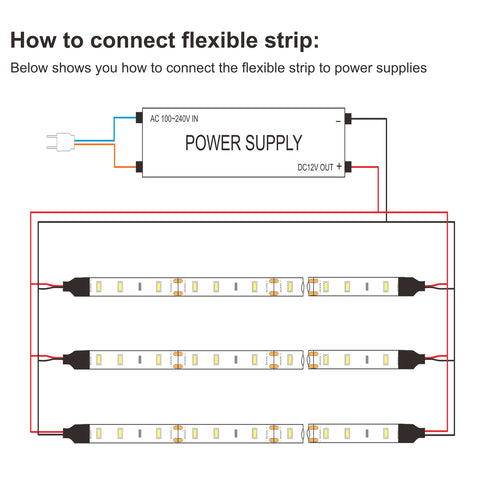

Product Installation:
