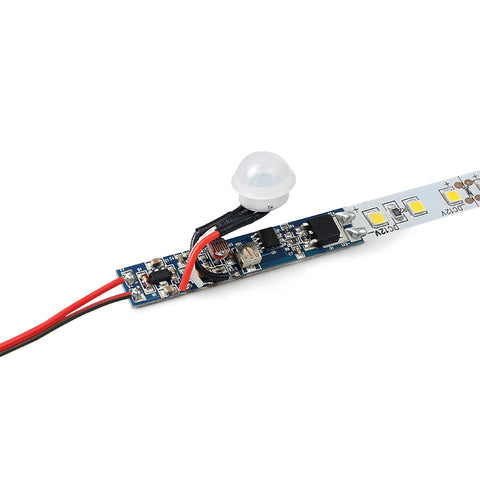

Motion sensor with light Sensor Switch LSS002 is to be assembled into lighting fixtures.
lt will turn off the LED light at day time and turn on the LED light automatically when human moves within 2 meters at night.
The lighting fixture equipped with LSS002 will stay on if the human body stays within detection range (2 meters) from the sensor at night and will turn off in 40 seconds after human body moves away more than 2 meters at night .
Light sensor switch adjustable range: 2-60 lux
Product Parameters:
item
PIR Motion Sensor Light Switch 8A Light Sensor Switch Auto On Off DC12V Automatic Infrared PIR Motion Sensor switch
detection range
2 meters
Place of Origin
China
Brand Name
Surmountor
Max Current
8A
Dimension
10x57mm
Voltage
DC12V-24V
Wattage
96W for 12V,and 192W for 24V.
Certificates
CE, ROHS
Warranty
2 Years
Delay time
40 seconds
Function
Light off/day,light on when human pass within 2M at night (detection range can be customized)
Light sensor switch adjustable range: 2-60 lux

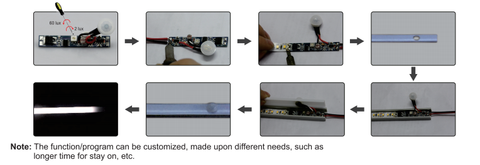

Product Installation:
Step 1: Cut a 10.5mm hole at the fixture. Step 2: Put the detector head into the 10.5mm hole. Step 3: Connect wires to the input end and output end of the conctrol PCB.
Product Certificatation:
Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
Packing & Delivery:
Custom Packing and Custom Label are available as request !
