Continue ShoppingIR013 IR Door Sensor Switch(Internal)
- $3.60
IR013 IR Door Sensor Switch(Internal)
- $3.60
12-24VDC 8A Infrared door Non-contact Motion Sensor Switch PCB LED IR Door Sensor Switch Dimmer for LED Light
Email:sales@surmountor.com
Product Parameters:

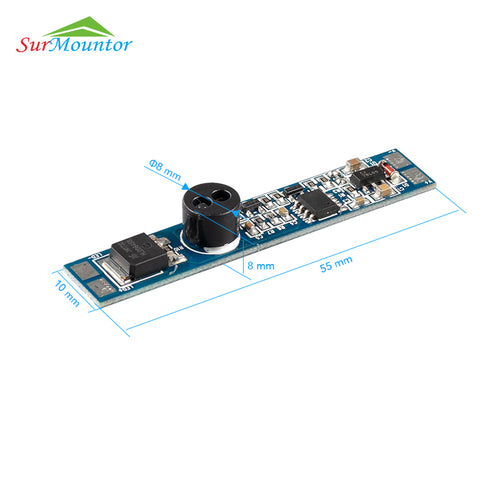

| Input/Output Voltage | 12-24V | Dimension | 55*10mm |
| Current | 8A | Watt | 96W (12V); 192W(24V) |
| Detection Range | 0.5cm≤Length≤10cm | Certificated | CE, RoHS |
| Manufacturer | Surmountor | Function | Automatically switch ON/OFF when open/close the door. |
Connection Guidance:
Product Description:
-
The LED lamp connects to the output end.
-
The IR sensor switch will turn on the LED light when open the door and will turn off the LED light when close the door.
-
Detection range is 10cm from the sensor detector to the door.
-
The sensor switch will turn on or off the LED light with above repeatable steps.

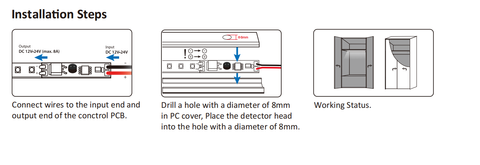

Product Installation:
Product Certificatation:
Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
Packing & Delivery:
Custom Packing and Custom Label are available as request !
