IR012 IR Hand Sensor Switch (Internal)/ IR012D IR Hand Sensor Dimmer

Email:sales@surmountor.com

Product Parameters:

Connection Guidance:

IR Hand Sensor Switch IR012 Product Description:

• The LED lamp connects to the output end.

• The IR sensor switch will turn on the led light when the hand pass over and will turn off the led light when the hand pass again.

• Detection range is 10cm from the sensor detector to the hand.

• The sensor switch will turn on or off the led light with above repeatable steps.

IR Hand Sensor Dimmer IR012D Product Description:

• LED strip is originally “off” and the LED indicate light on the sensor PCB is “on” when the power is connected on.

• The light will be on when hand passing over the IR sensor switch within 10cm detection range, and will be off when hand passing over again.

• Hold the hand over the IR sensor more than 3s to adjust the LED brightness dimming from 1% to 100%.

• The IR sensor will memorize the status of the LED brightness in DC12V−24V.

• The IR sensor switch will turn on or off the led light with above repeatable steps.

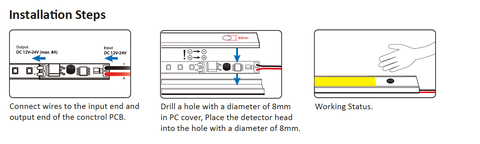

Product Installation:

Product Certificatation:

Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
