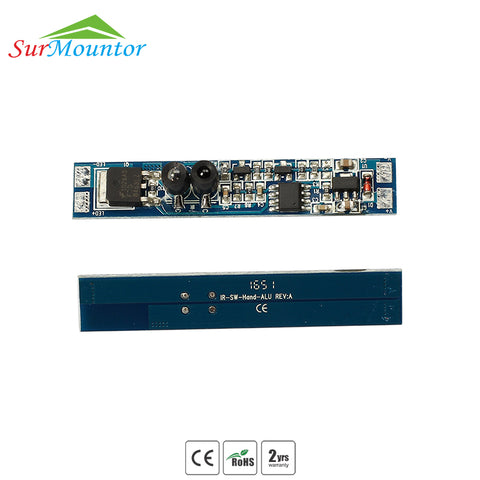

IR001 Internal IR Hand Sensor Switch
- $3.50
Hand sensor for LED strip and LED aluminum profile proximity IR hand small sensor led switch
Email:sales@surmountor.com
Product Description:
- The LED lamp connects to the output end.
- The IR sensor switch will turn on the LED light when the hand pass over and will turn off the LED light when the hand pass again.
- Detection range is 10cm from the sensor detector to the hand.
- The sensor switch will turn on or off the LED light with above repeatable steps.
Product Parameters:
|
Item Type
|
IR001 hand sensor for LED strip and LED aluminum profile proximity IR hand small sensor led switch
|
|
Model
|
IR HAND SENSOR SWITCH
|
|
PCB Size
|
55*10MM
|
|
Detective Range
|
0.5cm≤Detection Range≤10cm
|
|
Voltage
|
12-24V
|
|
Load
|
8A Max
|
|
Power
|
96W for 12V, 192W for 24V
|
|
Certificate
|
CE. RoHS
|
|
Working Porformance
|
When hand pass the sensor, light will up, and pass again, light will off.
|
|
Warranty
|
2 years
|
Product Installation:
The two IR diodes head should be put out of PC cover as the picture below:
Step 1: Drill 2 holes with a diameter of 5mm in PC cover.
Step 2: Place the detector heads into the holes with a diameter of 5mm.
Step 3: Connect wires to the input end and output end of the conctrol PCB.
Step 1: Drill 2 holes with a diameter of 5mm in PC cover.
Step 2: Place the detector heads into the holes with a diameter of 5mm.
Step 3: Connect wires to the input end and output end of the conctrol PCB.
Connection Guidance :
Product Certificatation:
Relative micro PIR sensor motion sensor 12v/24v for led strip led aluminum profile
Packing & Delivery:
Custom Packing and Custom Label are available as request !
